spingi bobina pneumatici ad aria

Pneumatic air compressed

Model push, pull & pullers, move fixtures, machines and wagons.

Equipped with pneumatic vertical adjustable coupling. ARL 500A and ARL 1200A are convenient to use when moving heavy machinery, fixtures, carts, even end products.

ARL 500 A and ARL 1200A are versatile enough for manufacturing, maintenance, processing or service environment.

  • Air Bellows: Inflates to link load to mover; downward pressure onto drive roller
  • Drive roller: features polyurethane material for optimum traction, excellent durability and easier steering
  • Air Valve: provides smooth variable speed adjustment for precise operator control
  • Handle Housing: Safely shields air supply lines and drive direction control.
  • SuperStructure: is durable, corrosion-resistant Nicked plated steel
  • Pusharm Socket: accepts various male interfacings (ball, pin, rod)
  • Dual revolving wheels: of durable phenol material provide easy steering for versatile movements of loads
  • Air Motor: can reverse for optimum manoeuvering of loads.

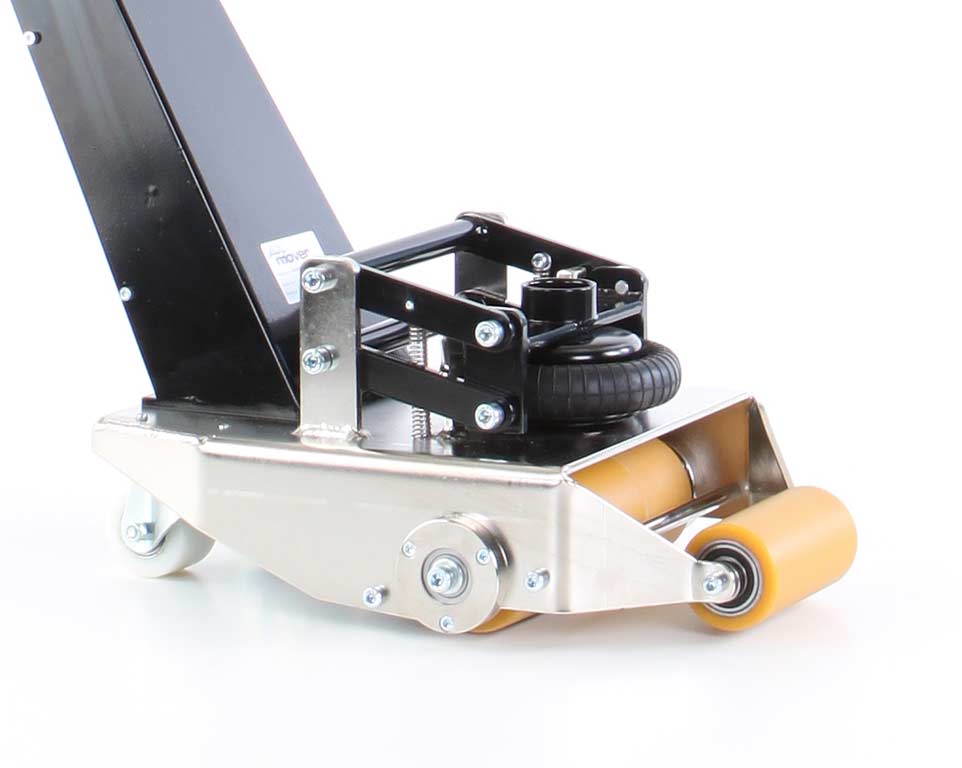

ARL 500 A

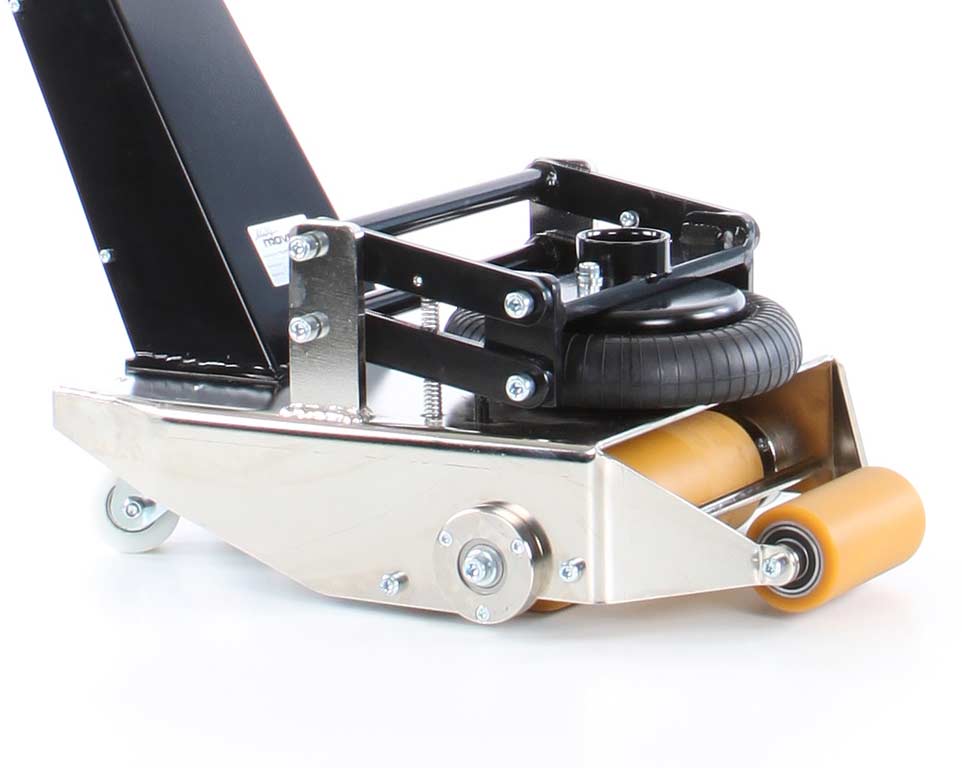

ARL 1200 A

Max Speed
Air Pressure
Air Volume
ARL 500 A
15 ton
30 kg
500 kp
20 m / min
6 bar
1000 l/min
ARL 1200 A
25 ton
45 kg
900 kp
17 m / min
6 bar
1200 l/min

Easy Mover - How it works

Galleria applicazione spingitore motorizzato
spostare carichi senza fatica, spintore pneumatico

Advantages of Easy Mover

Move load without stress and risk

Silent and reliable

Till 100 ton

Safe and easy to use

Light and adaptable

Battery and pneumatic
